HOME : Products > Ultra-wide harrow

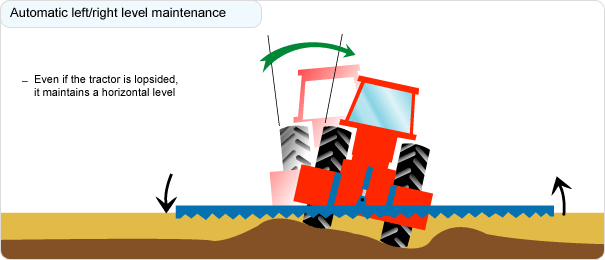

- Realization of ultra-wide harrow (4.2cm-5.6cm) The wider it is, the easier its horizontal cutting efficiency as it makes it easier to adjust horizontal cutting level

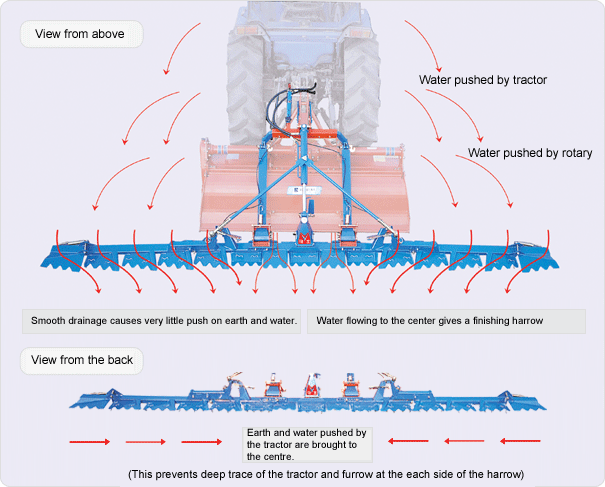

- Also, it does not require many round trips on the rice paddy so that it does not make the rice paddy messy and enhances the stabilization of young rice roots

Type	Applicable tractor	Applicable Rotary	Length (Unfolded)	Length (Folded)	Outer harrow plate	Assistant wing	Straw implanting spring
K4200	25~35 HP	145~160	413	159	92	35	21
K4500	35~52 HP	160~185	441	188	92	35	24
K5000	53~80 HP	190~205	494	215	105	35	24
K5200	65~100 HP	210~240	519	240	105	35	27
K5600	70~120 HP	230~280	555	276	105	35	28
K6300	50~130 HP	230~280	626	276	140	35	34
K6700	60~150 HP	260~360	670	320	140	35	38

- Applicable rotary means the width of the rotary axis, unit:cm

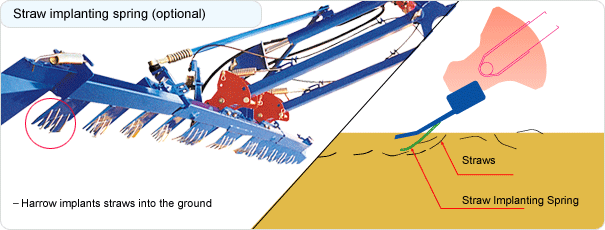

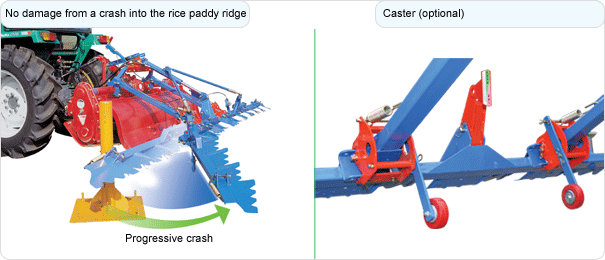

- Option : Straw implanting spring, Caster

-This specification is subject to change without prior notice for quality and performance improvement
